Carbery 1350 Litre Vertical Single Skin Plastic Oil Tank

Description

Carbery 1350 Litre Vertical Single Skin Plastic Oil Tank

The 1350 Litre Vertical Plastic Tank is ideal for heating oil storage installations where a Bunded Oil Tank is not a legal requirement or for installation within a suitably bunded area. Regulatory compliant and benefiting from Carbery’s 5 year Single Skin, Conditional Warranty it’s an ideal choice at Heating Oil Storage Installations.

Specifications

• Height: 1245mm
• Diameter: 1250mm
• Weight: 40Kg
• Nominal Capacity: 1309 Litres
• Brimful Capacity: 1378 Litres
• Outlet Diameter: 25.4mm (1″) BSP
• Outlet Position: Bottom

*Nominal capacity denotes 95% of brimful volume as per EN 13341
*As per OFTEC requirements all UK Single Skin Tanks are supplied with a 50mm (2”) diameter fuel tank vent
*As per OFTEC requirements all UK Single Skin Tanks are supplied with a 50mm (2″) BSP Offset Fill Connection – Lockable.

Benefits

• Low Maintenace
• UV stabilised for protection against the damaging effect of sunlight
• Manufactured from premium quality corrosion resistant material
• All Carbery Single Skin Heating Oil Tanks are supplied complete with a conditional, 5-year warranty against manufacturing, material and design defect
• EN13341 Compliant
• OFCERT approved
• Manufactured to ISO Standards.

Equipment

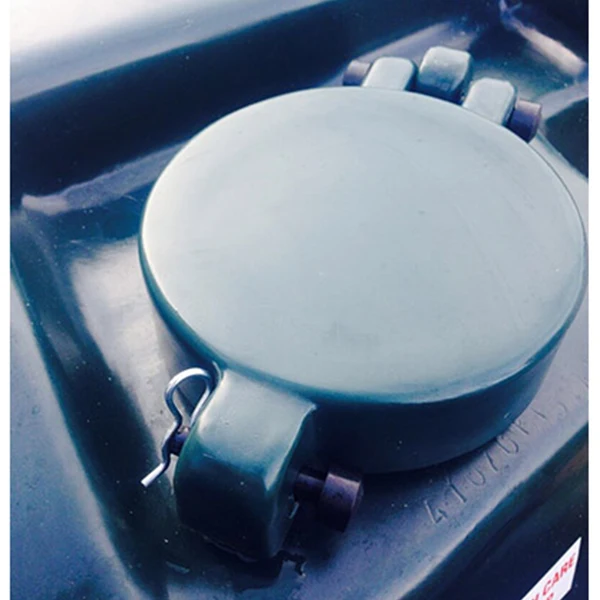

• 121mm (5”) lockable oil tank fill / inspection point
• 50mm (2”) diameter fuel tank vent fitting point
• 32mm diameter electronic gauge point
• 25.4mm (1”) diameter BSP bottom outlet
